Qualstar TLS-6000 Tape Library System for SDLT and DLT Tape Drives

The TLS-6000 Series Automated Tape Libraries offer superior performance and value for DLT and SuperDLT tape users. With capacities from 350 GB to over 144 TB, the TLS-6000 Series economically and reliably automates DLT-based applications, whether backing up a single server or as an integral part of an enterprise-wide storage management solution.

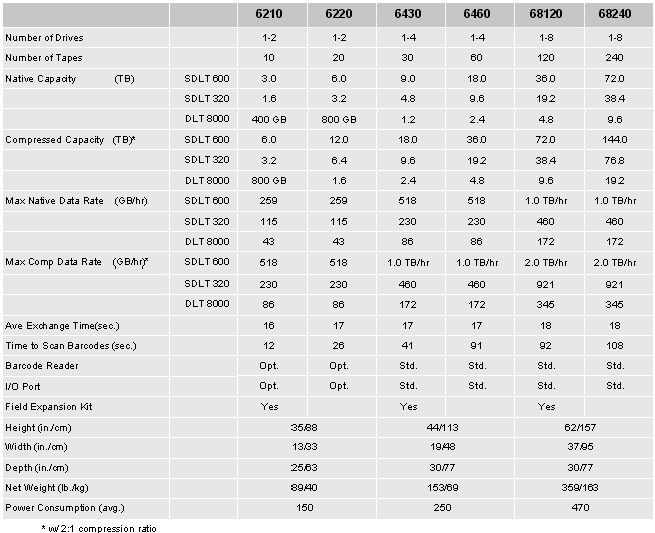

The TLS-6000 family comprises six models, providing a broad range of cost-effective solutions. Housing one to eight SuperDLT 600, SuperDLT 320 or DLT 8000 tape drives and up to 240 tapes, TLS-6000 multi-drive library models readily support concurrent reading and writing. Data transfer rates can exceed 1.8 terabytes per hour to meet the throughput needs of today's rapidly-growing networks.

The SANSmart Fibre Channel Option supports LAN-free and serverless backup using the latest 2Gb SAN technologies.

All TLS-Series libraries are available with Q-Link, Qualstars web browser accessed remote library manager that enables administrators to configure, upgrade, and monitor any TLS-Series tape library via a company intranet or over the internet from anywhere in the world. Q-Link extends the librarys comprehensive front panel menu system and adds additional functionality such as automatic e-mail notification based on rules set by the administrator, and firmware updates can be implemented remotely.

The TLS-6000 Series also offers advanced features such as barcode scanning of tape cartridges, and an I/O Port for importing and exporting individual tapes under application control.

Q-Link Developed for the RLS-Series libraries, VIOP is now incorporated in every TLS model. An exclusive Qualstar design feature, VIOP, Variable I/O Port, allows users to match the number of I/O slots to their operational requirements. Applications are not constrained by limits imposed by libraries with a fixed number of I/O slots. Users can assign the number of slots to best match their requirements. VIOP compliments the hardware I/O Ports which continue to be included or available in all models.

Logical Library is built into every SCSI TLS-Series library. It allows up to four servers to share a single library via a SCSI interface, even if each server is running a separate application. Systems that you couldnt afford to upgrade can now be protected automatically. Support for multiple SCSI busses is also built-in to maximize throughput in direct-attach architectures.

Qualstar is known worldwide for quality and reliability. All electrical and mechanical adjustments have been eliminated for easy installation and enhanced reliability. Tape drive reliability is improved by providing individual fans for each drive to insure proper cooling. Filtered, positive air pressure is maintained throughout the library to reduce contamination.

Providing built-in capacity and performance growth is a hallmark of all Qualstar TLS-Series automation families. All drive bays are pre-wired: users can easily install additional tape drives for increased throughput. Field upgrade kits are also available to double the tape capacity of some models.

Founded in 1984, Qualstar has been designing and manufacturing tape automation products since 1994. Offering over 30 models for AIT, SAIT, DLT and LTO formats, our TLS-Series families consistently set industry standards for quality, performance and value.

The RLS-Series delivers Qualstars Simply Reliable Automated Tape Library technology to users requiring rackmountable solutions.

The TLS-5000 Series is the first family of Automated Tape Libraries using Sonys new SAIT (SuperAIT) tape drive technology to deliver ultra-dense enterprise class backup and near online data storage solutions.

The SAIT-1 tape drive is the result of combining the best features of Sonys widely used AIT recording technology with the increased media area afforded by the ½-inch tape format. In Qualstars advanced robotic design, SAIT yields industry-leading capacity, storage density, performance and reliability.
