Part Number
|
Short Description
|
Long Description
|
|
5325301980 |

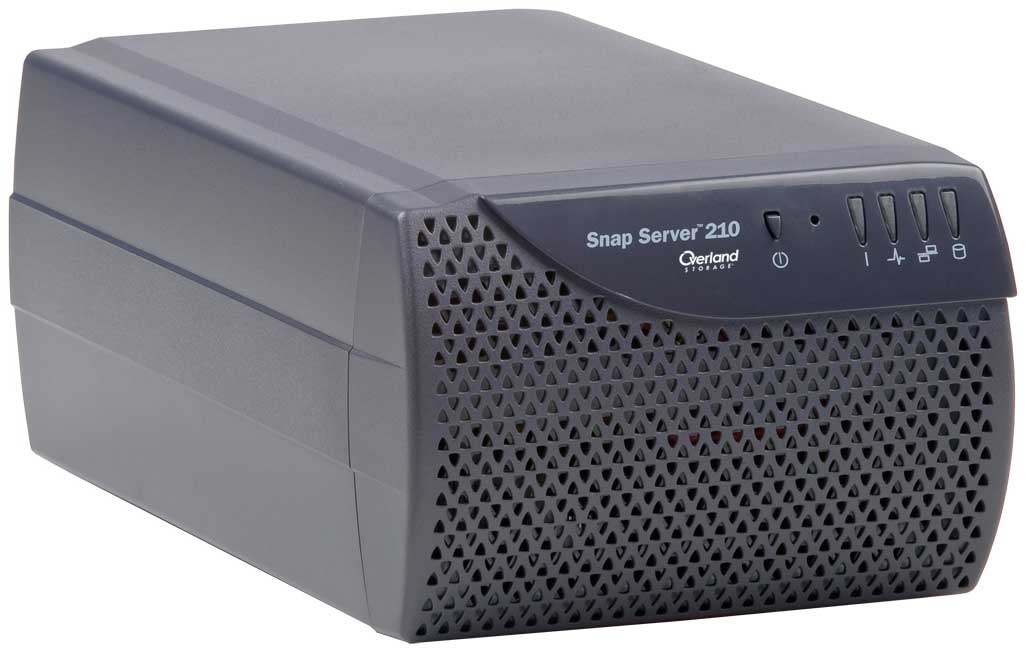

Snap Server 210,
500GB |
Snap Server 210,
500GB is a fixed capacity desktop network attached storage server.
Includes 2 x 250GB enterprise-class SATA-II Drives; single core 1.3GHz
processor; 512MB of Memory (1 x 512MB Memory Module); single Gigabit
Ethernet port; single power supply. Supports RAID 0, 1. Software
Included: GuardianOS.
|
|
Form Factor |
Raw Capacity |
Estimated
Configured Capacity |
Drive Type |
Memory Option |
Expansion Options |
SCSI |
Ethernet |
Power Supply |
|
Desktop |
500GB |
N/A |
2 x 250GB SATA |
512MB |
N/A |
N/A |
Single GbE |
Single |
500GB or 1TB Network Attached Storage solution
The Snap Server 210 combines best-in-class storage performance with capacity up to 1TB, RAID data protection, and customer-centric ease of use, and capacity ideal for workgroups and remote offices. Built on the award-winning GuardianOS platform, the whisper quiet Snap Server 210 integrates many enterprise-class features into a new class of cost-effective storage for small and medium sized businesses and the distributed environments of many larger companies. Easy to install and virtually maintenance-free thereafter, the Snap Server 210 offers a variety of software options, allowing you to choose the right data protection for business and budget needs.
- RAID 0 and RAID 1 data protection
- Outperforms all other dual-drive storage alternatives
- Store block and file data on the same server
- Integrates seamlessly into Windows, Linux, UNIX and Apple environments
- RoHS and WEEE compliant
Technical Specifications
Customer Needs
Workgroups and remote offices who need cost-effective storage that combines best-in-class performance, high-capacity, and exactly the right data protection for the business and budget needs.
Benefits
Cost-effective, high-performance storage capacity thats extremely easy to install and use, built with the expertise that have made Snap Server the choice of nearly 200,000 users around the world.
Key Differentiators
The best combination of performance, capacity, and features for the price. The ability to share, manage, and protect data in a distributed office environment.
Capacity Options
Available with a fixed capacity of 500GB or 1TB
Cross-Platform Support
GuardianOS, Windows, Linux, UNIX, Apple
Network Interface
Autosensing 10/100/1000Base-T, single RJ-45
Processor
1.3GHz
Memory
256MB
Drive Configuration
2 x 250GB SATA II drives
2 x 500GB SATA II drives
Network Transport Protocols
TCP/IP, UDP/IP, AppleTalk
Network File Protocols
Microsoft Networks (CIFS/SMB), Linux/UNIX (NFS v2/3 over TCP & UDP), Apple (AFP v2/v3), Web (HTTP 1.1/HTTPS), File Transport Protocol (FTP)
Network Block Protocols
iSCSI target support
Supports qualified iSCSI software and hardware initiators (see details below). Supports Internet Storage Name Services. (iSNS). Microsoft iSNS v3.0 Server has been qualified
iSCSI software initiator support
Microsoft Initiator 1.06 and 2.01: Windows 2003, 2000, XP (on 32-bit system only for all operating systems)
emBoot NetBoot/i v1.10 and WinBoot/i (only for boot) v2.0; Windows 2003, 2000, XP (WinBoot uses Microsoft bootable initiator and only supports Windows 2003 (on 32-bit system only for all operating systems)
Linux: UNH-iSCSI Initiator v1.5.3
iSCSI hardware initiator support
Qlogic QLA4010: Windows 2003 (Storport driver 2.1.0.8), 2000 (SCSIport driver 2.1.0.3) (on 32-bit system only for all operating systems)
Network Client Types
Window: 98, Me, NT, 4.0, 2000, 2003, XP
Macintosh: OS 8.x, 9.x, 10.x
UNIX: Solaris 7, 8, 9; HP-UX 11; AIX 4.3.3, 5.x
Linux: Red Hat Linux 7.x, 8.x, 9.x; Fedora
FTP
Server Emulation
Windows 2000/2003
Windows NT 4.0
AppleShare (v2/v3)
NFS v2/v3
FTP
Network Security
Microsoft Active Directory Service (ADS Member Server)
Kerberos Authentication v5
Windows NT Domain (member server)
File and Folder Access Control List (ACL) Security for Users and Groups
Security for Users and Groups
UNIX Network Information Service (NIS) Support
UID/GID mapping between NFS & CIFS
CHAP Authentication (iSCSI target level)
System Management
Browser-Based User Interface for Remote Administration
Snap Server Manager Client-Based Setup Utility (platform-independent)
SNMP (MIB II and Host Resource MIB)
User Disk Space Quotas for Windows, Macintosh, and UNIX/Linux
Group Disk Space Quotas for NIS Groups
Environmental Monitoring
Email Notification Alerts
Network Time Protocol Support
Secure Sockets Layer (SSL) v2/3 128-bit encryption
Transport Layer Security (TLS) v1
Data Protection
RAID 0 (data striping), RAID 1 (mirroring), RAID 5 (drive striping with parity)
Optional CA eTrust Antivirus software
Optional snapshot technology
Optional Snap EDR enterprise-class replication software
Optional BakBone NetVault Workgroup Edition
Optional StorAssure Client Back up Software
Network backup: Supports VERITAS NetBackup/Backup Exec, CA BrightStor ARCserve/Enterprise, Legato NetWorker, BakBone NetVault, Microsoft Backup Software for Windows 95, 98, Me, NT, 2000, XP, and NDMP v2, v3, v4. Compatible with Dantz Retrospect for Macintosh.
USB: Support for APC UPS device over USB
Power Rating
60W 100-240 VAC 50-60Hz
Input Current
1.8A (RMS) for 115VAC, 0.9A (RMS) for 240VAC
Power Consumption
47W (steady state)
Heat Dissipation
160 BTUs/hr
Acoustics
Operating idle: 23.7db (typical office environment)
Height
4.3 inches (109.22mm)
Width
6.1 inches (154.9mm)
Depth
10.5 inches (266.7 mm)
Weight
9.4 lbs (4.26 kg)
Warranty
2-year hardware warranty; 2-year software support
Additional Information
Snap Server 210 Datasheet - CLICK HERE
